CB030169-1

名称描述内容

CB030169-1

CB030169-1

2.5mm Pitch, JST SM系列，母针，SHF-001T-0.8BS压接线，双头，长度100，200，300，500，1000mm可选。

市场价： 0.00

价格： 0.00

2.5mm Pitch, JST SM系列，母针，SHF-001T-0.8BS压接线，双头，长度100，200，300，500，1000mm可选。

端子型号：SHF-001T-0.8BS

线材型号：UL1007, 22AWG, 黑色

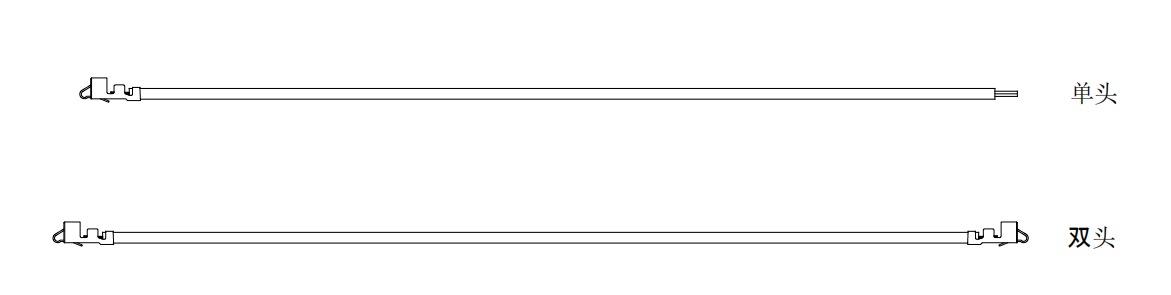

压接类型：双头

料号	长度
CB030169-101	100
CB030169-111	200
CB030169-121	300
CB030169-131	500
CB030169-141	1000

Click here to download Drawing
